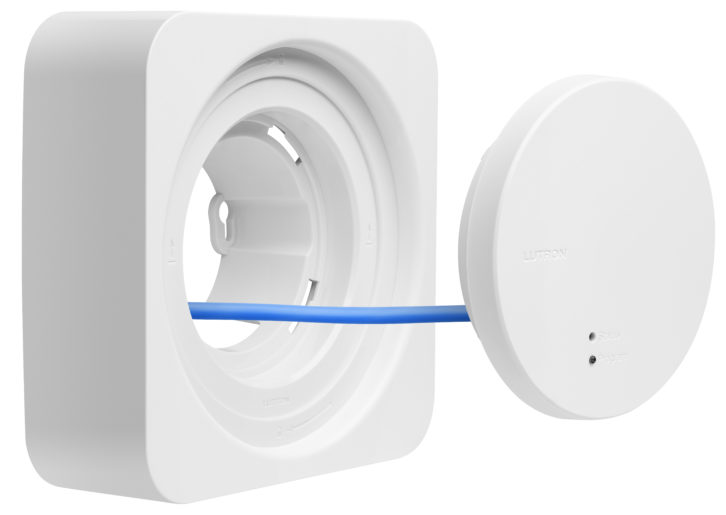

The new processor is powered by PoE, so pros can place it centrally in the home, without the need for a nearby power outlet, to optimize the system’s RF network connectivity. It allows clients to connect up to 200 devices featuring Lutron’s proprietary Clear Connect RF technology for outstanding reliable performance. It is easy to program via a computer and through Lutron’s app, which can be used on the jobsite to efficiently fully set up the system, refine settings easily, and incorporate real-time client feedback. Also, it’s simple to make system changes remotely, post install, meaning fewer service calls. RadioRA 3 offers backwards compatibility with most RadioRA 2 and RA2 Select devices, so existing customers can expand their systems with new RadioRA 3 wall controls.
NOTES ON INSTALLATION

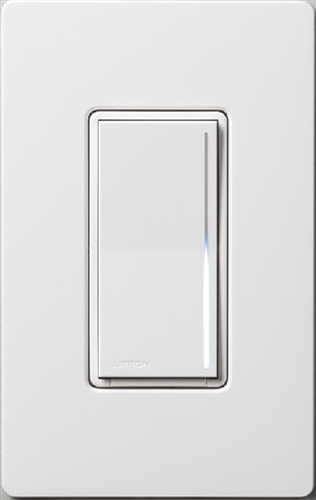

RadioRA 3 Sunnata dimmers and switches REQUIRE a neutral connection
What are the system limitations?
A RadioRA 3 system can have a maximum of one (1) Processor and (4) Auxiliary Repeaters for the extra RF range coverage. (maximum 10,000 sq ft)

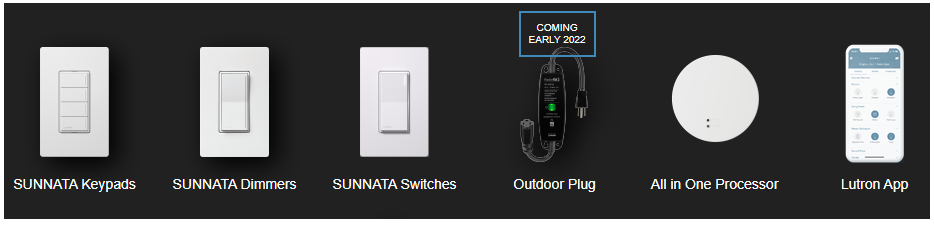

The RadioRA 3 processor works with both the new RadioRA 3 Sunnata Devices (Clear Connect-Type X) and existing RadioRA 2/RadioRA 2 Select (Clear Connect Type-A) Devices
Each RA 3 processor controls up to 200 devices (including the processor and 4 repeaters) with the following limitations:

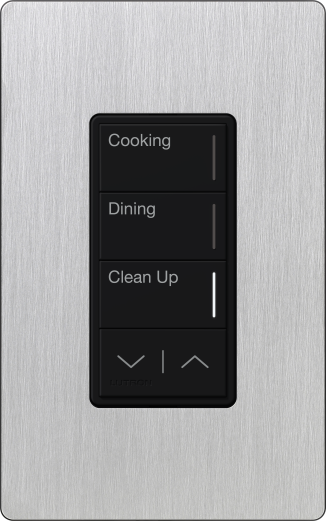

RadioRA 3 Sunnata Devices (Clear Connect-Type X): A maximum of 100 Sunnata dimmers, keypads, switches and other compatible devices can be added to a RA 3 system.
The Sunnata companion dimmers/switches DO NOT count toward the 100 device limitation.
RA 3 Sunnata Devices (Clear Connect-Type X) communicate using a wireless mesh topology. In order to assure proper communication, these rules must be adhered to when designing the system.
Important: ALL Sunnata RF (Clear Connect-Type X) devices should be located within 75ft of the RA 3 processor
At least 2 Sunnata RF devices (not including companion dimmers/switches) must be located within 25ft of the RA 3 processor
Each Sunnata RF device (not including companion dimmers/switches) must be located within 25 ft of two other Sunnata RF Devices
|
